材質：不銹鋼、雙相鋼、碳鋼、鈦、鎳等
設計制造標準 Design ＆Manufacture Standard
|
設計與制造按 ：GB/T 12235、ASME B16.34 法蘭連接尺寸按：JB/T 79、ASME B16.5、JIS B2220 螺紋連接尺寸按：ISO7-1、ISO 228-1等 焊接連接尺寸按：GB/T 12224、ASME B16.25 快裝連接尺寸按：ISO、DIN、IDF 檢驗按：GB/T 13927、API598 |
Design manufacture as per:GB/T 12235、ASME B16.34 End flange dinebsion:JB/T 79、ASME B16.5、JIS B2220 The thread ends oonform to ISO7-1、ISO 228-1etc. The buit weld ends conform toGB/T 12224、ASME B16.25 Clamp ends conform toISO、DIN、IDF Pressure test asGB/T 13927、API598 |
性能規范 Specifications
|
公稱壓力：0.6-1.6MPa,150LB,10K 強度試驗：PNx1.5MPa 密度試驗：PNx1.1MPa 氣密封試驗：0.6MPa 閥門主體材料：CF8(P),CF3(PL),CF8M(R),CF3M(RL) 適用介質： 水、蒸汽、油品、硝酸類，醋酸類 適用溫度：-29°C-150°C |
Nominal pressure:0.6-1.6MPa,150LB,10K Strength test:PNx1.5MPa Seal tese:PNx1.1MPa Gas seal test:0.6MPa Valve body material:CF8(P),CF3(PL),CF8M(R),CF3M(RL) Suitable medium:water,steam,oil,products,nitric Suitable temperature:-29°C-150°C |

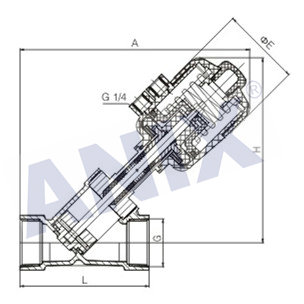

產品結構圖
